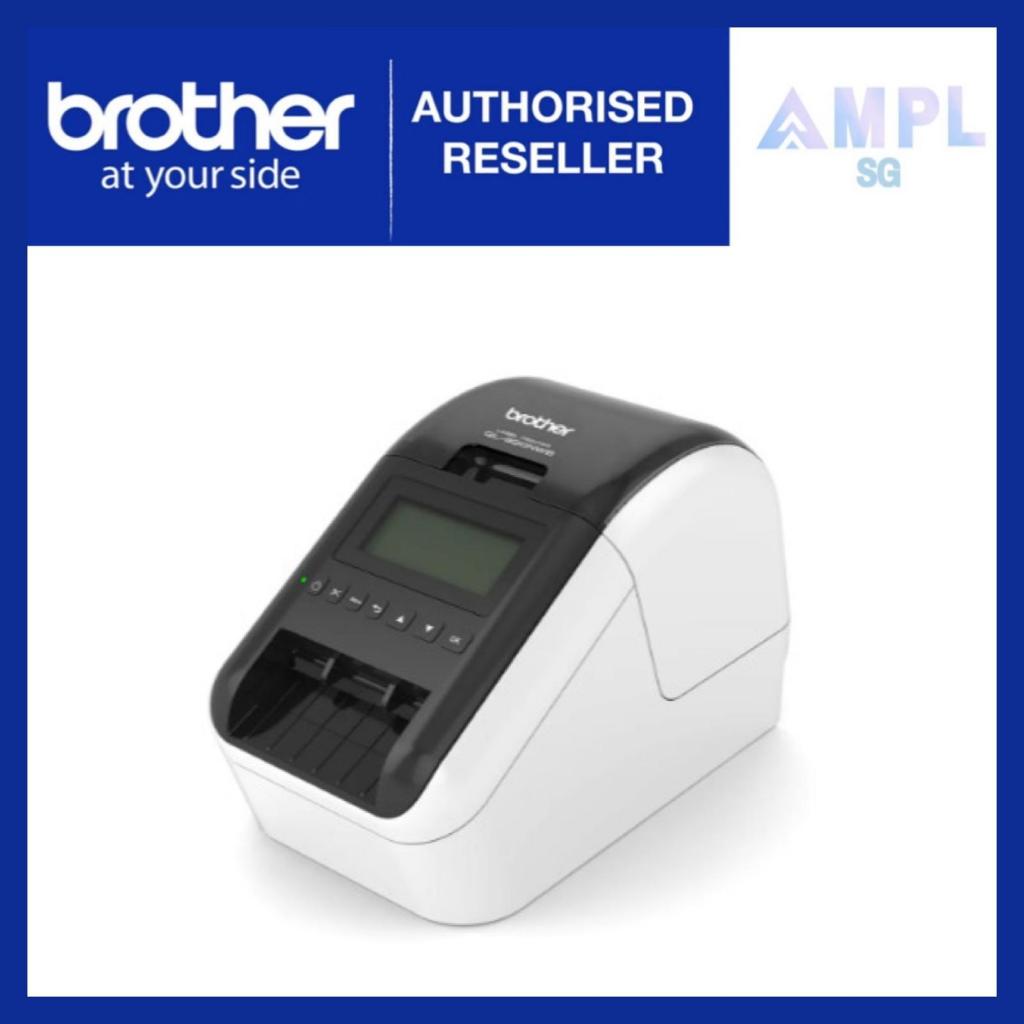

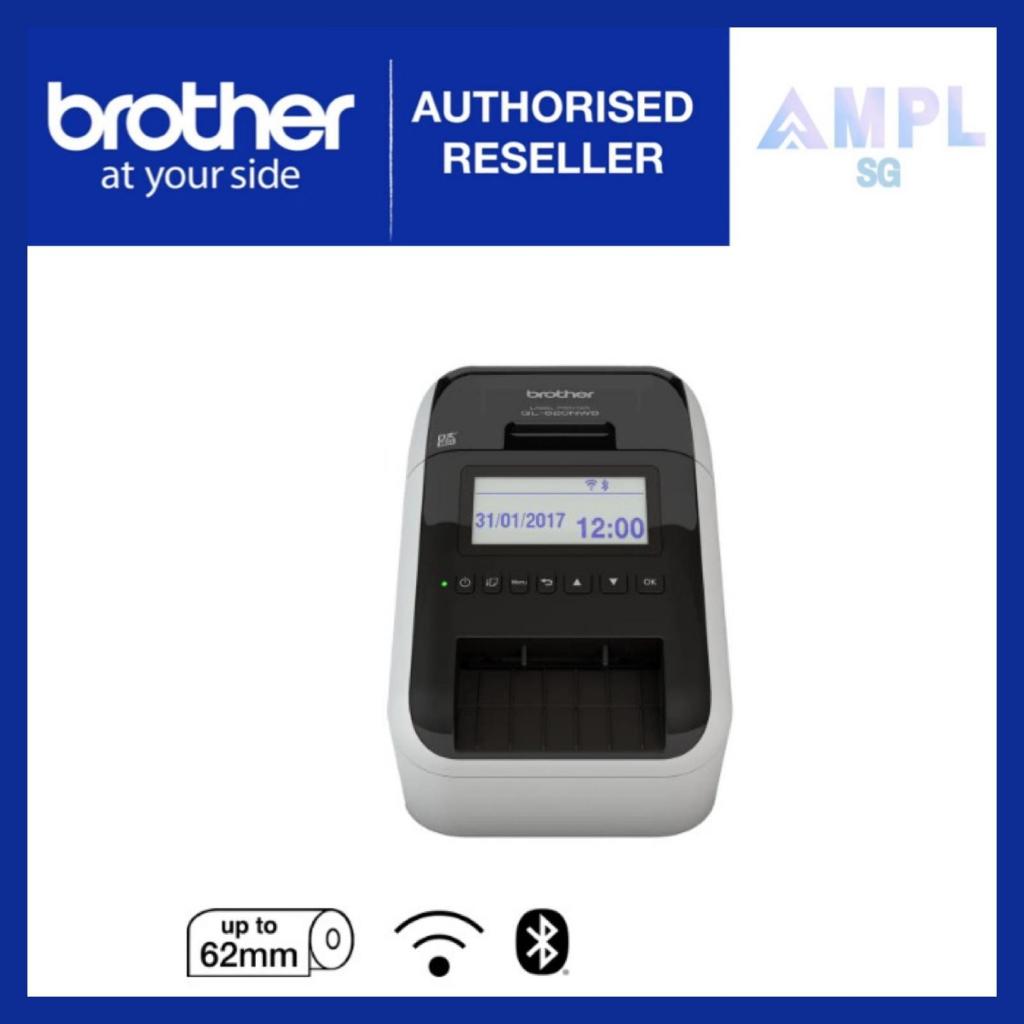

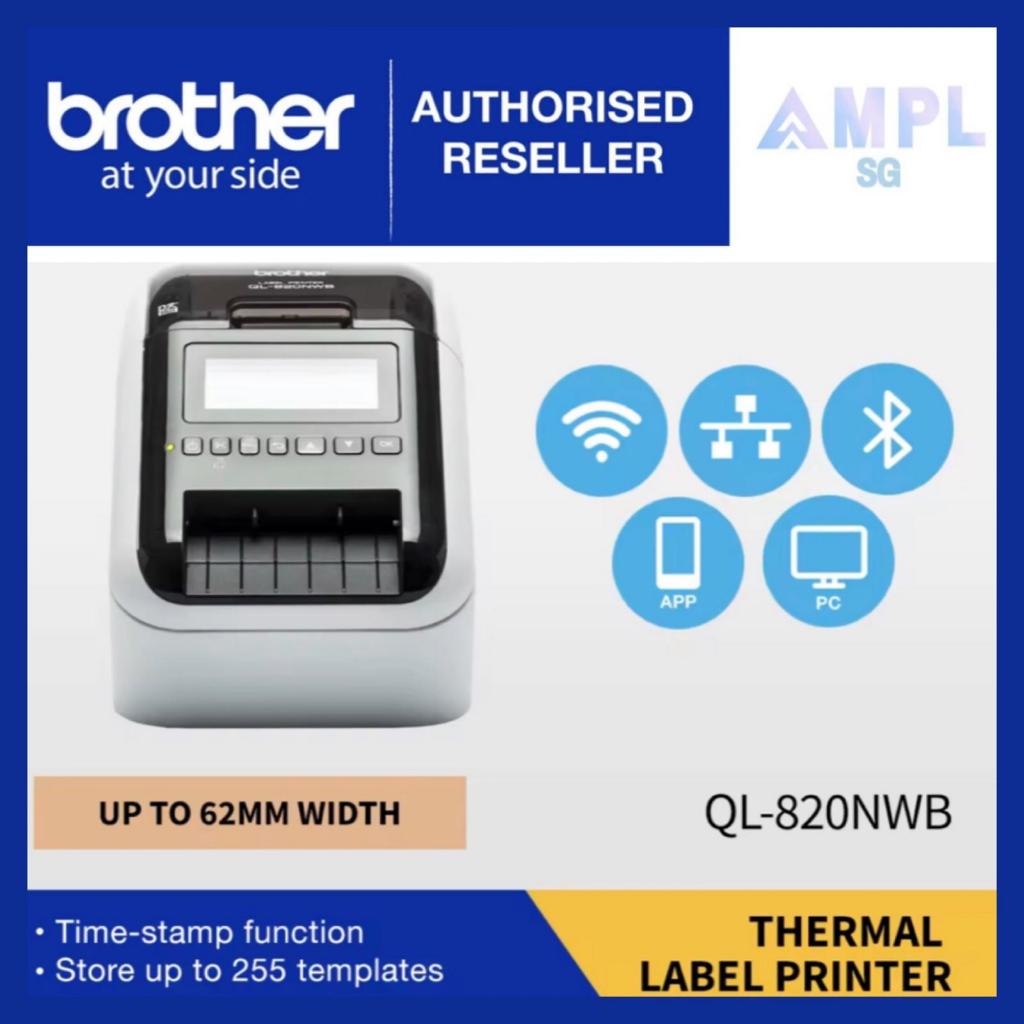

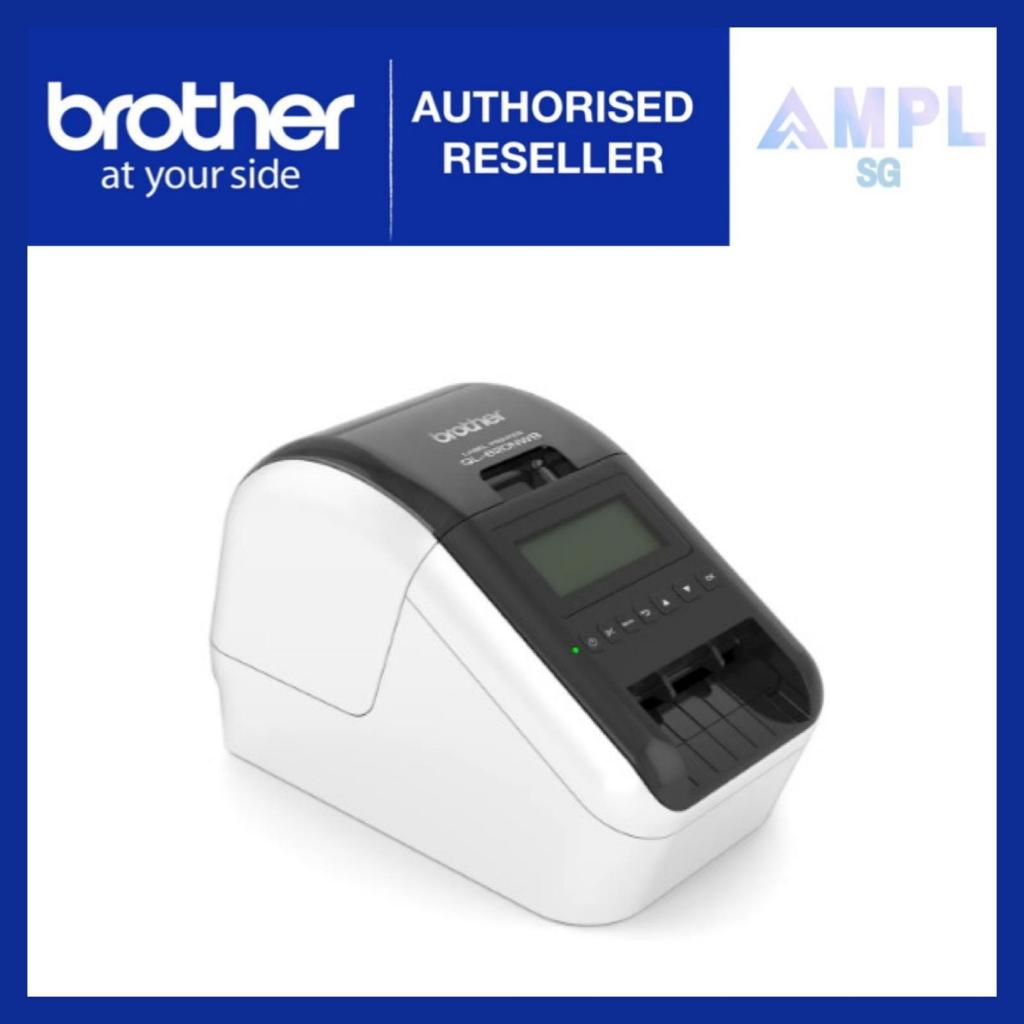

Brother QL-820NWB Label Printer | Auto cut function
| Print up to 62mm DK rolls width | 110 labels per minute fast print speed | 300 x 600dpi high print resolution
| Print Black/Red text on White labels
Basic Specs
KEYBOARD
No Keyboard
MEDIA TYPE
DK roll
AVAILABLE TAPE WIDTHS
12 - 62mm
DIMENSION (WIDTH X DEPTH X HEIGHT)
125.3 mm x 234 mm x 145 mm
WEIGHT
1.16 kg
WARRANTY
1 Year Carry in Warranty by Brother Singapore Direct
Print Output
PRINT RESOLUTION
Standard: 300dpi × 300dpi,
High resolution mode: 300dpi × 600dpi
PRINT SPEED
110 labels/min, 176mm/sec
NO. OF LINES PRINTABLE
Adjustable within 62mm width
NUMBER OF CHARACTERS
No
NUMBER OF SYMBOLS
No
BAR CODE
1. CODE 39
2. CODE 128
3. UCC/EAN-128(GS1-128)
4. ITF(I-2/5)
5. CODABAR(NW-7)
6. UPC-A
7. UPC-E
8. EAN-8
9. EAN-13(JAN13)
10. GS1 DataBar(RSS)(GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked)
11. PDF417(Standard, Truncate, Micro)
12. QR Code(Model 1, Model 2, Micro)
13. Data Matrix (ECC200 Square, ECC200 Rectangular)
14. MaxiCode
15. CODE93
16. POSTNET
17. UPC-E EXTENTION
NUMBERING
Print via P-touch Editor
Media
TAPE CASSETTE
Up to 62mm
ROLL WIDTH
62mm
Functions
CUTTER
Auto
MULTI-BLOCK PRINTING
Print via P-touch Editor
COPY PRINTING
Print via P-touch Editor
MIRROR PRINTING
Print via P-touch Editor
PREVIEW
via P-touch Editor
Memory
FILE STORAGE
No
MEMORY BUFFER SIZE
6MB, 255 templates
Power Supply
POWER SUPPLY
Optional: PA-BU-001 rechargeable Li-ion battery, Bundled with PA-AD-001A AC Power Adapter
AUTO POWER-OFF
Yes
AC ADAPTOR
PA-AD-001A
Interface
BUTTON
Power, Cutter, Menu, Cancel, Up Arrow, Down Arrow, Ok Button
DISPLAY
Yes
BACKLIGHT
Yes

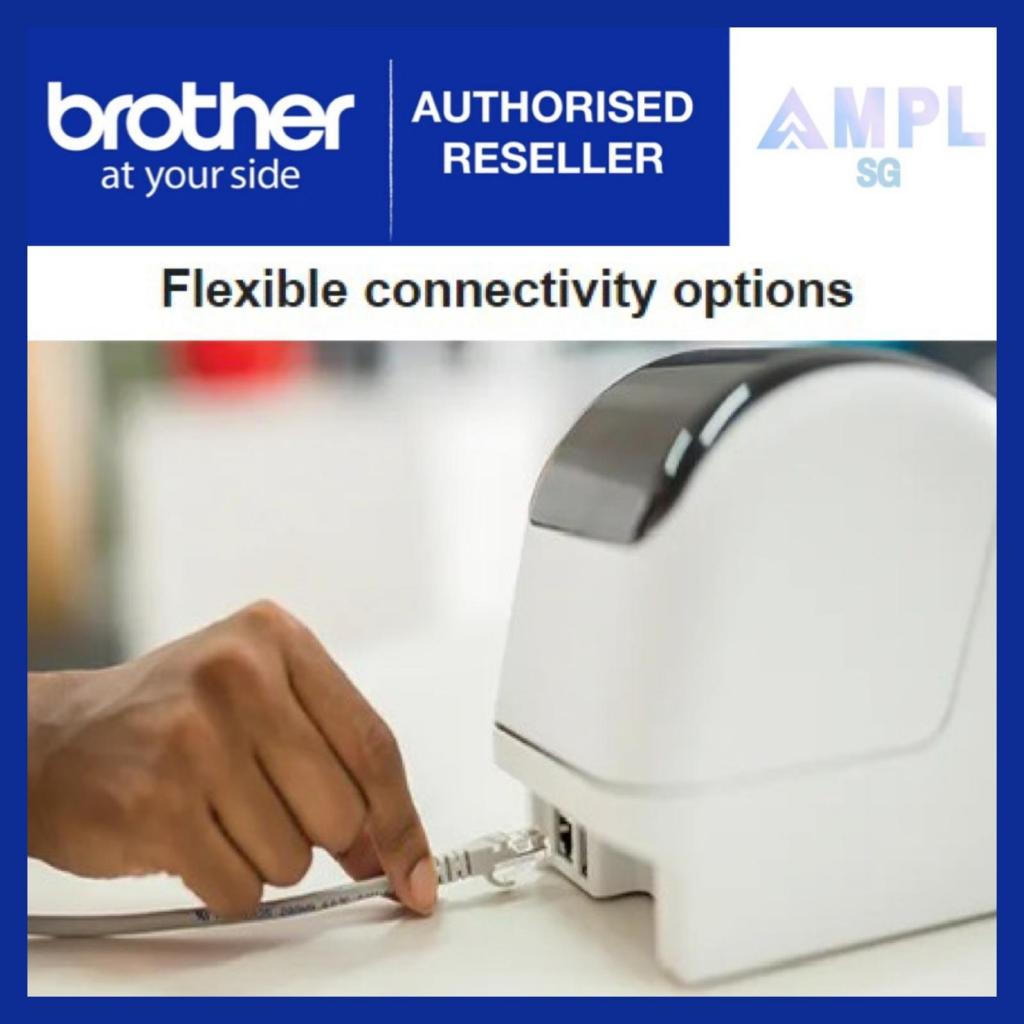

Connectivity
USB
Yes
WIRELESS LAN
(Wireless Direct)
IEEE802.11g/n
(Infrastructure mode)
IEEE802.11b/g/n
(Ad-hoc mode)
IEEE802.11b
